1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm

Product Categories
guangzhou fiber cablepuls co ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm

  • 1
  • 2
  • 3

Brand Name : PUNAISGD

Model Number : GJYXCH-1B1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Keyword : Self Supporting Drop Cable

Type : GJYXCH-1b1.3

Model : GJXH-1G657A

Jacket Sheath : LSZH

Net Weight : 0.8kg/km, add 0.05kg/km

Steel : 0.45mm

Installation Style : Aerial

Operation Temperature : -20℃-+60℃

Fiber : G652D/G657A1/g657A2

Steel Wires : 1mm, 0.45mm*2pcs

Installation Method : Indoor/Outdoor

Contact Now

1/2/4F Self-supporting Butterfly Drop Cable Black 2.0×5.0mm

Description:
    • Suitable for FTTH indoor and outdoor applications
    • Available for 1, 2, 4 cores
    • With 2 parallel FRP reinforcements
    • Fibre bend insensitive
    • The cable has a supporting wire for aerial installation
    • Excellent compression and impact resistance


1.1 Speicification

tem Fig-8 aerial drop cable
Cable Type GJYXFCH
Fiber Type G657A,G652D
Number of Fiber 1,2,4
Cable Size(mm) 2.0*5.0
Cable Weight(Ref) 21kg/km
Attenuation(Db/km) ≤0.3 at 1310nm,≤0.4 at 1550nm
Short Tensile Strength 80N
Long Tensile Strength 40N
Sheath Color Black or White
Sheath Material LSZH,PVC
Crush Resistance(N/100mm) 500
Min.Bending Radius(G657A) 30nm(dynamic) 15mm(static)
Min.Bending Radius(G652D) 60nm(dynamic) 15mm(static)
Transport/Storage/Operating temperature From -20℃ to + 60℃
Installation temperature From -5℃ to + 50℃

2.2 Fiber Specifications
Fiber style Unit SM
G652D		 SM
G657A1		 SM
G657A2
condition nm 1310/1550 1310/1550 1310/1550
attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
PMD Maximum Individual Fiber [ps/√km] ≤0.2 ≤0.2 ≤0.2
PMD Design Link Value ps/(nm²×Km) ≤0.08 ≤0.08 ≤0.08
Fiber cutoff wavelength λc nm >=1180,≤1330 >=1180,≤1330 >=1180,≤1330
Cable cutoff wavelength λcc nm ≤1260 ..... .....
MFD 1310nm um 9.2±0.4 9.0±0.4 9.8±0.4
1550nm um 10.4±0.8 10.1±0.5 9.8±0.5
Step(mean of bidirectional measurement) dB ≤0.05 ≤0.05 ≤0.05
Irregularities over fiber length and point discontinuity dB ≤0.05 ≤0.05 ≤0.05
Difference backscatter coefficient dB/km ≤0.03 ≤0.03 ≤0.03
Attenuation uniformity dB/km ≤0.01 ≤0.01 ≤0.01
Cladding diameter um 125.0±0.1 124.8±0.1 124.8±0.1
Cladding non-circularity % ≤1.0 ≤0.7 ≤0.7
Coating diameter um 242±7 242±7 242±7
Coating/chaffinch concentrically error um ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0
Core/cladding concentricity error um ≤0.6 ≤0.5 ≤0.5
Curl(radius) um ≥4 ≥4 ≥4

2.3 Standard Color Identification of Fiber
No. 1 2 3 4
Color Blue Orange Green Brown


1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm

1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm

Details Images
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm

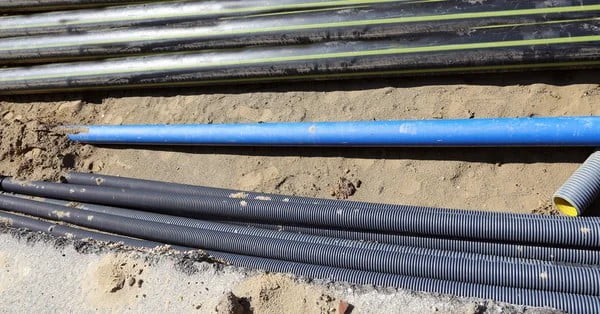

Installation Instructions

1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
Product Paramenters
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm


Company Profile
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
Product packaging
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
Our Advantages
1F 2F 4F Self Supporting Drop Cable FTTH Butterfly Drop Cable Black 2.0×5.0mm
